Update to latest hardware version NanoVNA-H Rev3.6, with the following improve
1. Lower power noise, lower noise when using harmonics;
2.1300mAh battery, with a compact 2.8 inch size, used continuously for 6 hours;
3. Add MicroSD card slots for easy storage of test data;
4. Add RTC support;
5. Modify the port names to Port1 and Port2;

Features:

With ABS case, full covered, can protect the device well

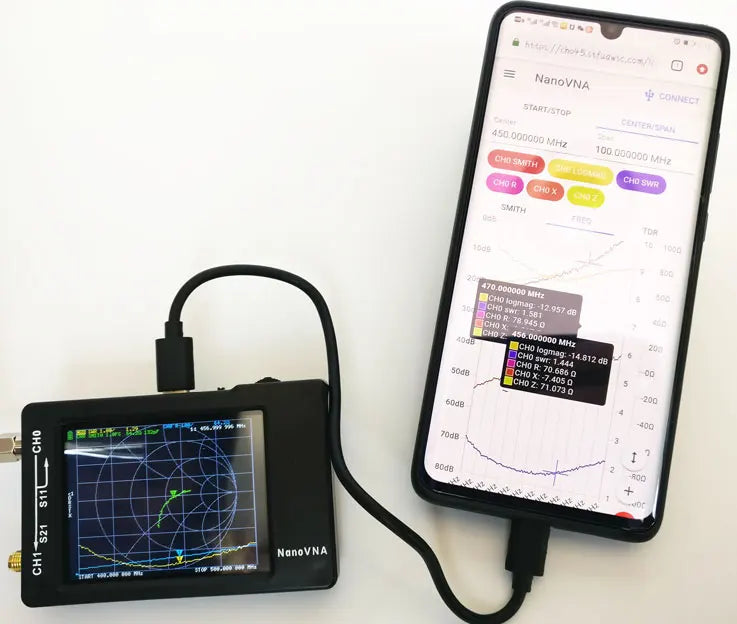

Support typec-typec line, more convenient to connect to mobile phones ,Support to most Android phones with the same screen display(Doesn't support for iPhone). Solve the problem of small screen, insufficient brightness and so on.

With micro SD card slot, can save the test record to the card.

Support time domain analysis function (TDR)

The battery usage can be displayed on the interface.

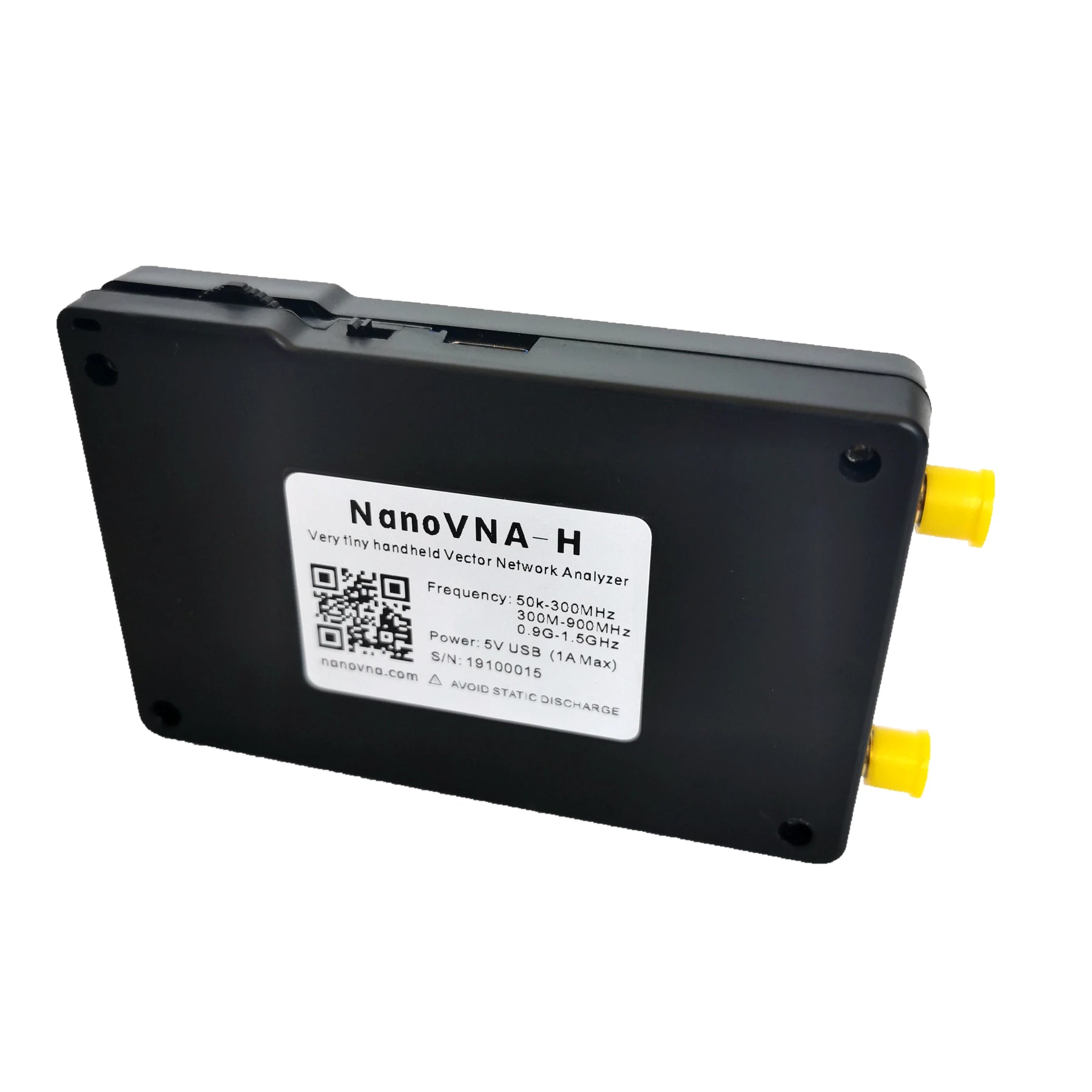

The product serial number is attached to the back

Specification:

PCB: 54mm x 85.5mm x 11mm (without the size of connectors, switches)

Measurement Frequency:10KHz -1.5GHz

RF Output: -13dbm (maximum -9dbm)

Frequency Accuracy: ＜0.5ppm

Measurement Range: 70dB (50kHz-300MHz), 50dB (300M-600MHz), 40dB (600M-900MHz) enable extended firmware)

Port SWR: < 1.1

Display: 2.8 inch TFT (320 x240)

USB Interface: USB Type-C; Communications Mode: CDC (Serial)

Power Supply: USB 5V 120mA, built-in 650mAh electricity, maximum charging current 0.8A

Number of Calibration Points: 101 (Fixed)

Number of Scanning Points: 101 (Fixed)

Display Tracking: 4, Marking: 4, Save Setting : 5

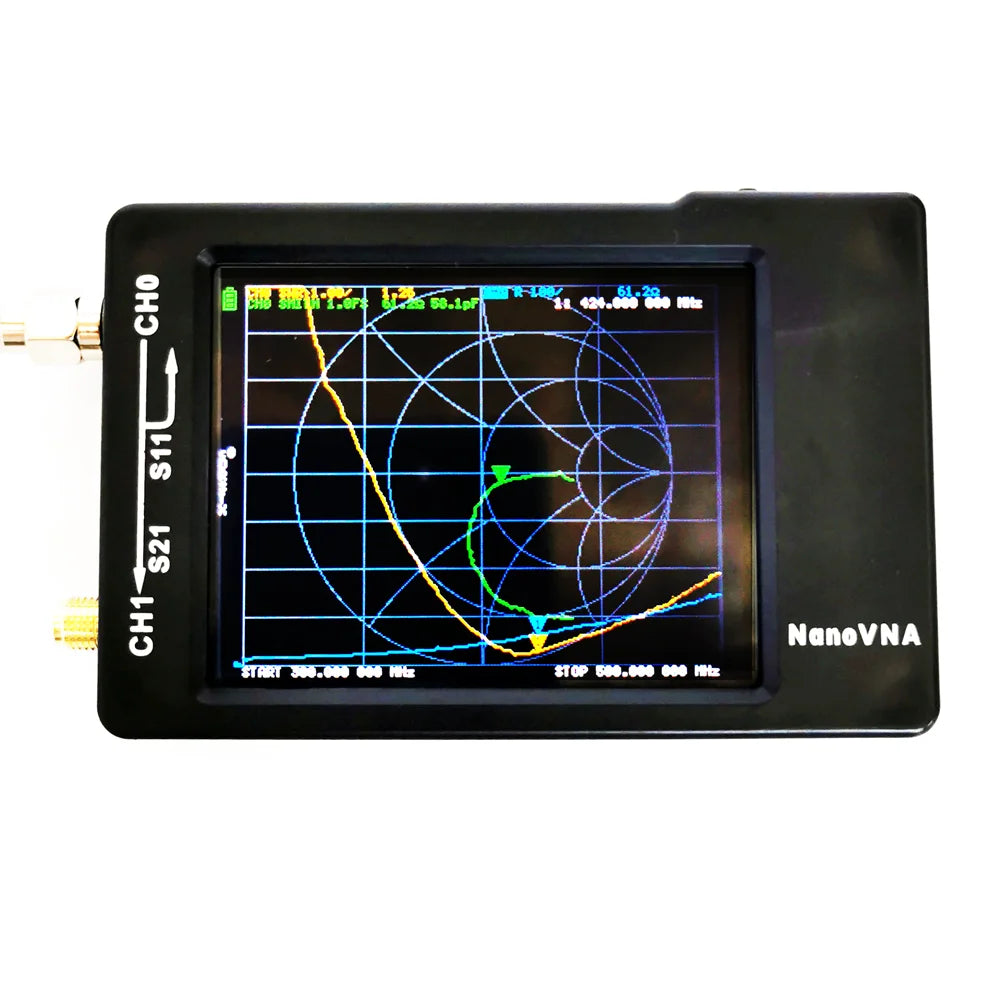

Measuring S parameters, voltage standing wave ratio, phase, delay, Smith chart and the like

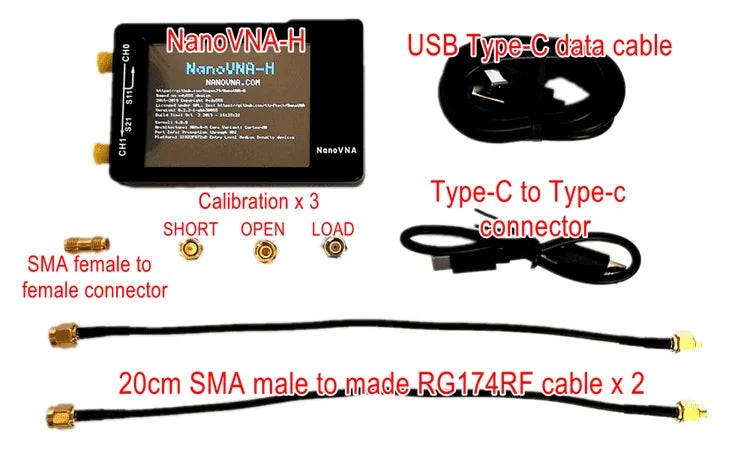

Package List:

Come with the original package

1X NanoVNA-H
2X 20cm SMA Male to Male RG174 RF Cable
2X SMA Female to Female Connector
1X SMA Simple Calibration Kit SHORT
1X SMA Simple Calibration kit OPEN
1X SMA Simple Calibration kit LOAD
1X USB Type-C Data Cable
1X Type-c to Type-c Line
1X Touch Paddle
