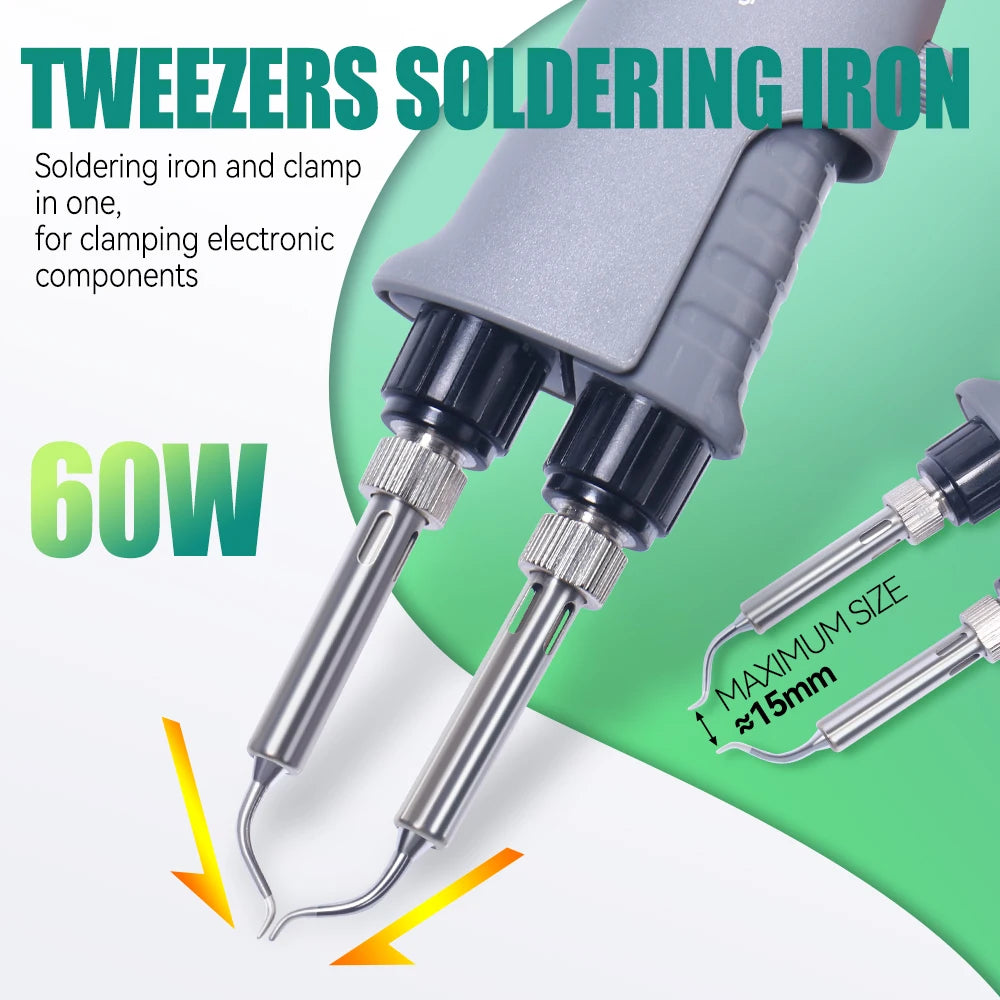

Welding two soldering joints by once, double efficiency
Model: 938D (Portable)
Parameter:
Maximum power: 240w
Rated power: 44w
Main unit dimensions: L138xW51xH33mm ±5mm
operating ambient temperature: 0℃~40℃/32°F~104°F
Temperature range: 200℃~480℃/392°F~896°F
Display: LED Nixie Tube
Tip to ground resistance: <2 Ohms
Function:

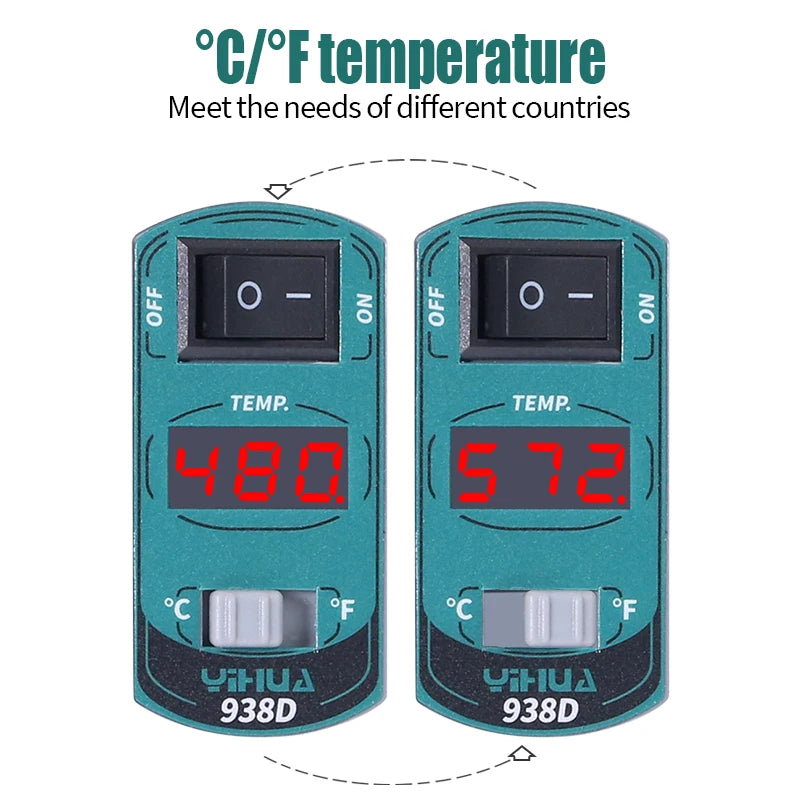

1. Fahrenheit/Celsius temperature conversion, satisfy the different need

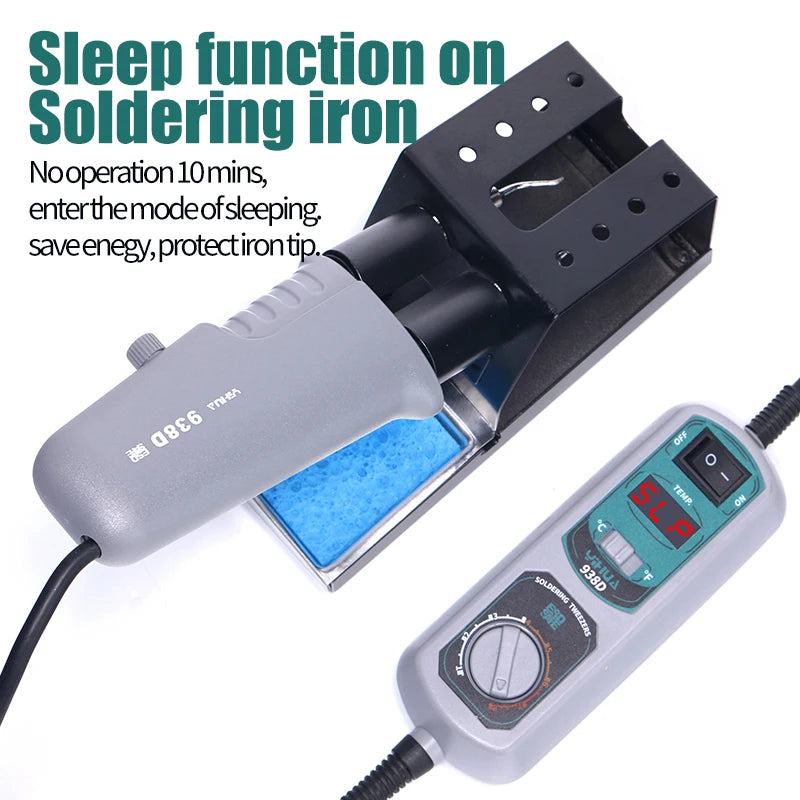

2. 10 mins auto-sleep, ensure safety, reduce the possibility of tips oxidation, prolong the use life of tips

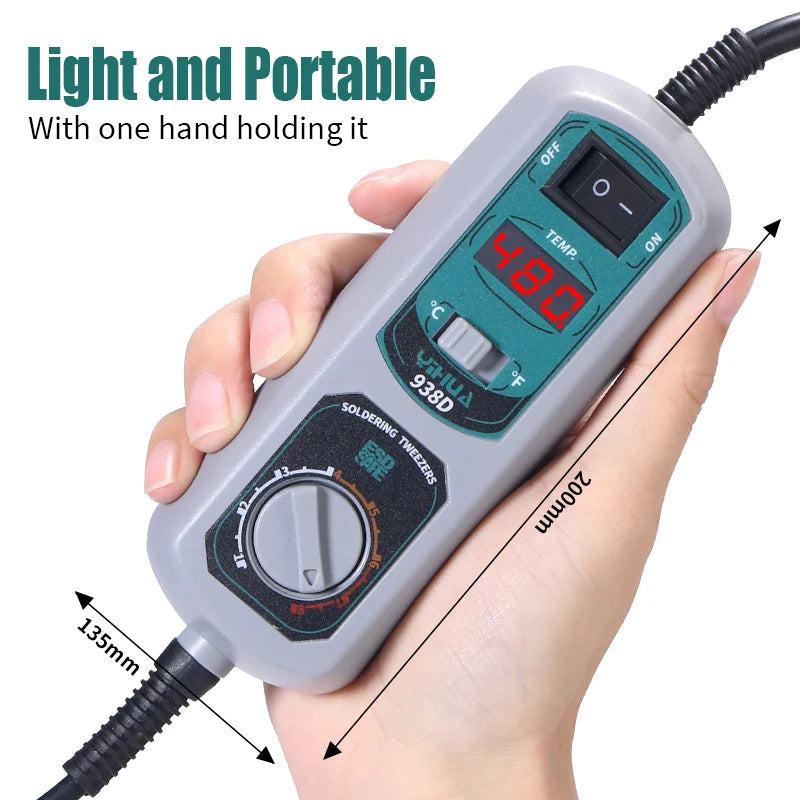

3. light and portable, with one hand to handle it
4. heating up fast, 60W heating element,100-480 °C
5. more precise, PID microcomputer temperature control
6. energy-saving, 10 mins iron sleep
How to use:

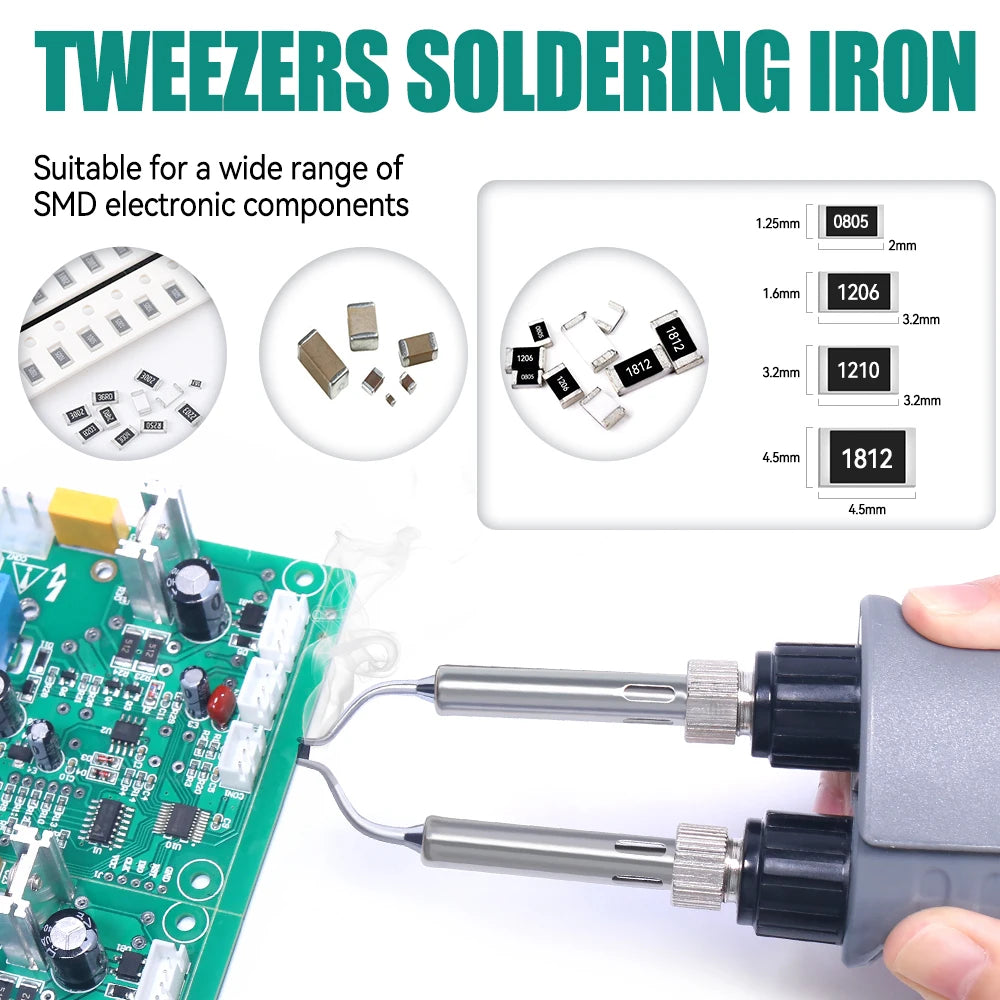

Suitable for soldering and desoldering applications on a broad range of SMD and Through-Hole components. This unit is especially great for manufacturing assembly lines, 2 solder joints can be worked on at the some time to provide high operation efficiency.

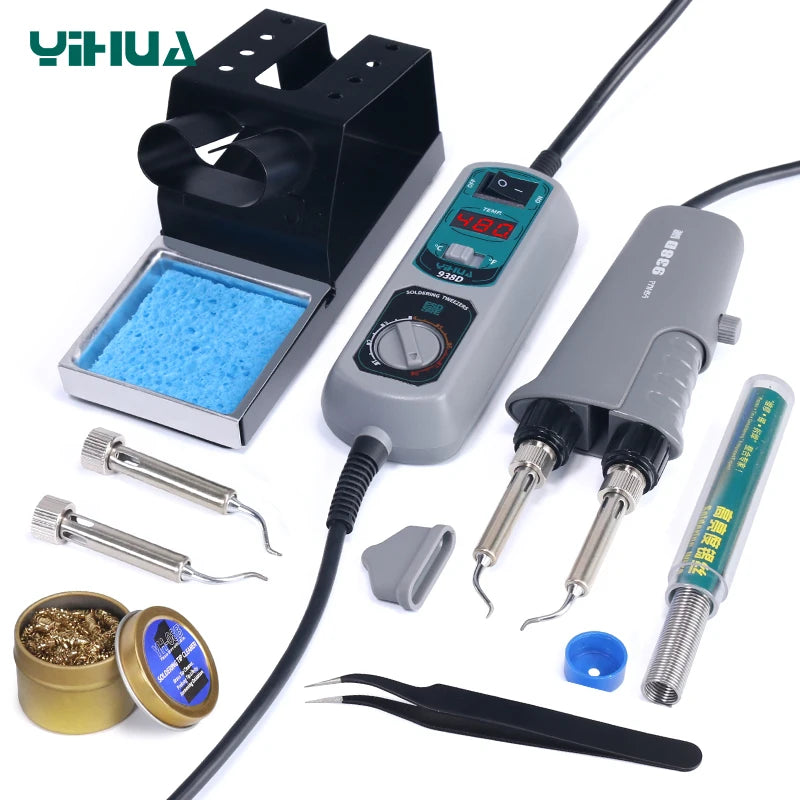

What's in the box:
1. YIHUA938D Portable electric soldering iron
2. Tweezer soldering iron tips (1 pair)
3. Cleaning ball 08B (1 pcs)
4. Tubular soldering wire (1.0mm) (1 pcs)
5. Tweezer (1 pcs)
Because your installation method is incorrect, please follow the video for installation
Can follow the video to correct

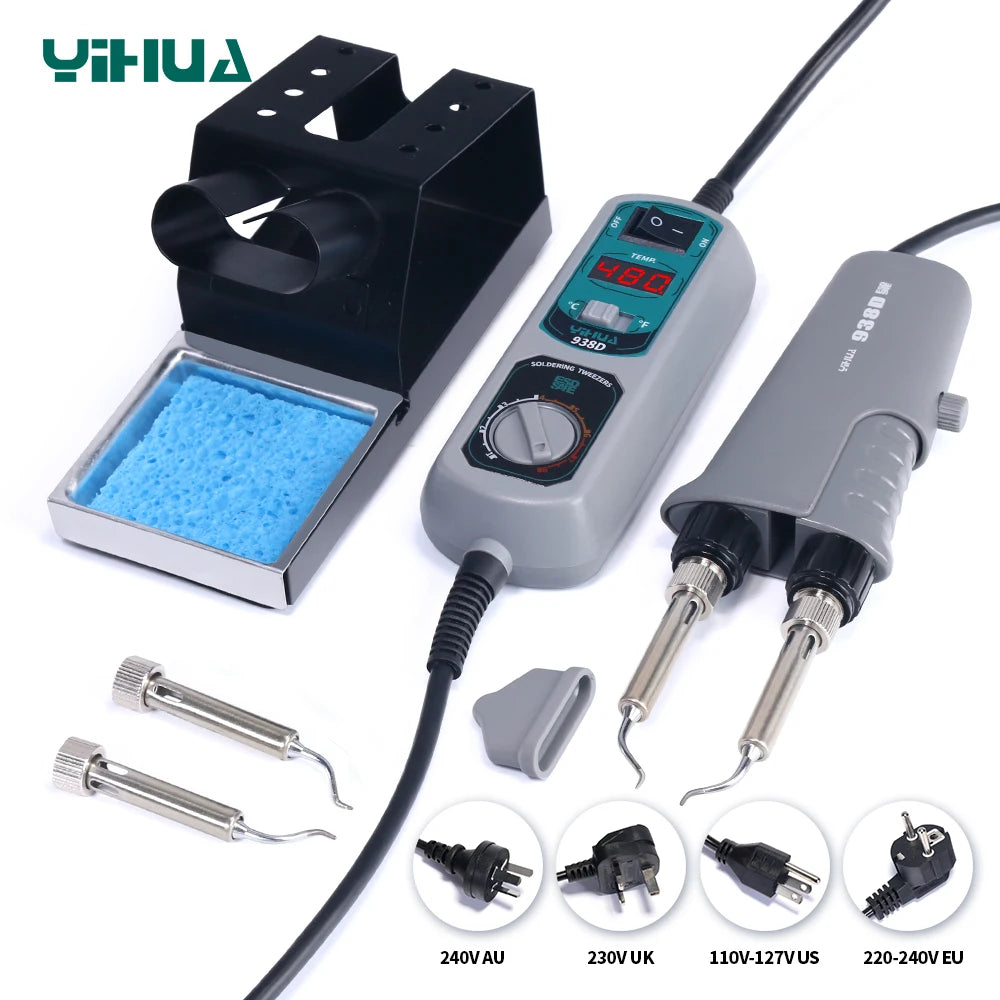

2. The volatge of soldering iron 938D
US: 110V
EU: 220V-240V
AU: 240V
UK: 230V
